AN-5000C Mass Flow Controller
Features
Accurate at Low Flow
Fast Response
Wide Pressure Range Compatibility
Excellent Linearity
Long-Term Stability
High corrosion resistance
High Stable Removable Sensor
compact Connection

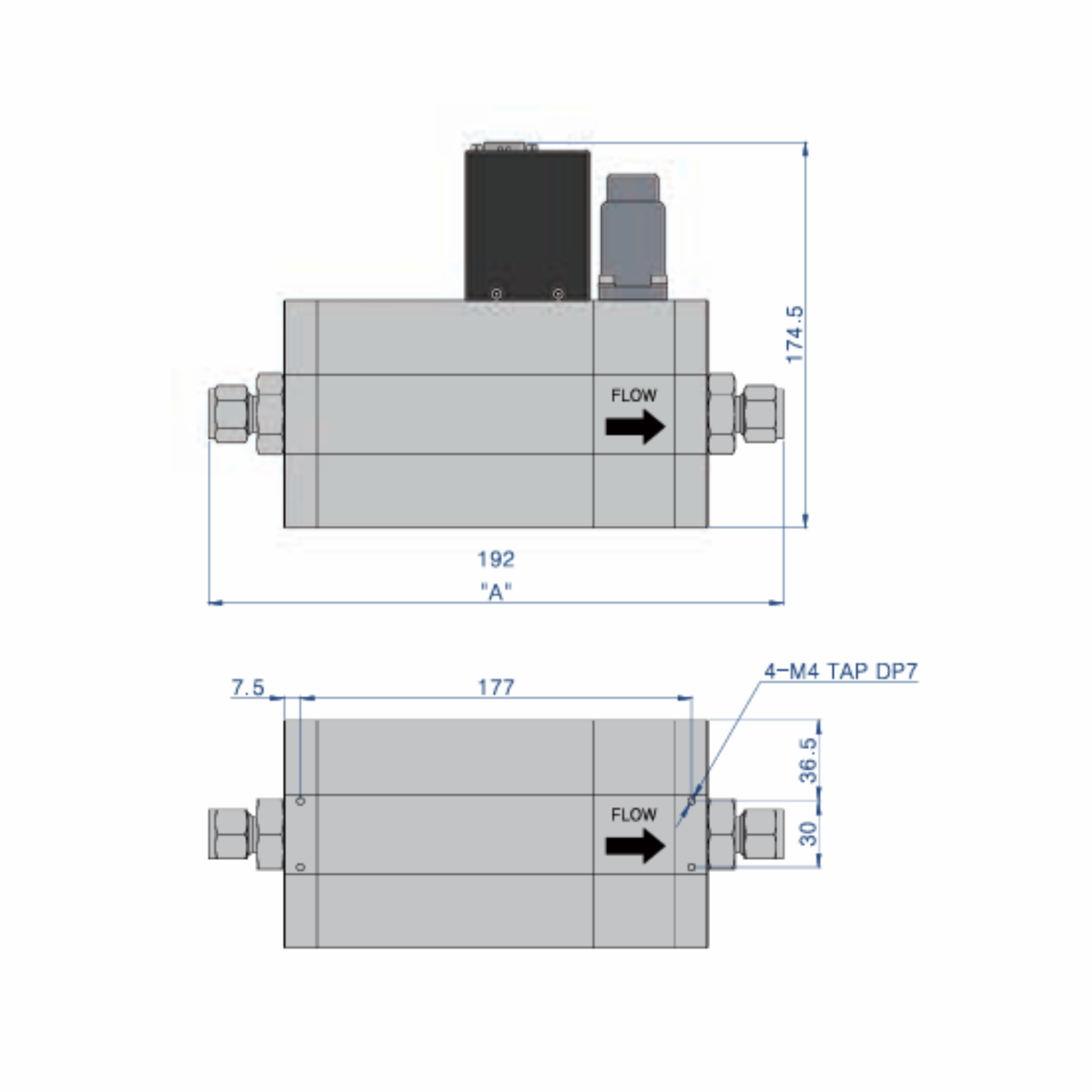

| Connection | "A" Dimension(mm) |
| 3/4" SWG 1" SWG | 260 268.7 |
Specifications
| Model | AN-5000C |
| Range(N2) | 2500slpm~5000slpm |
| Response Time | < 2 sec |
| Accuracy | ±2% of FS |
| Repeatability | ±0.25% |
| In/Out Signal | 0~5Vdc or 4~20mA |
| Supply Power | +15 or +24Vdc, 350mA |
| Max Operating Pressure | < 13 bar |
| Max Operating Temp | 0~50℃ |
| Leak Rate | 1X10-9atm. cc/sec |
| Control Range | 3~100% |
