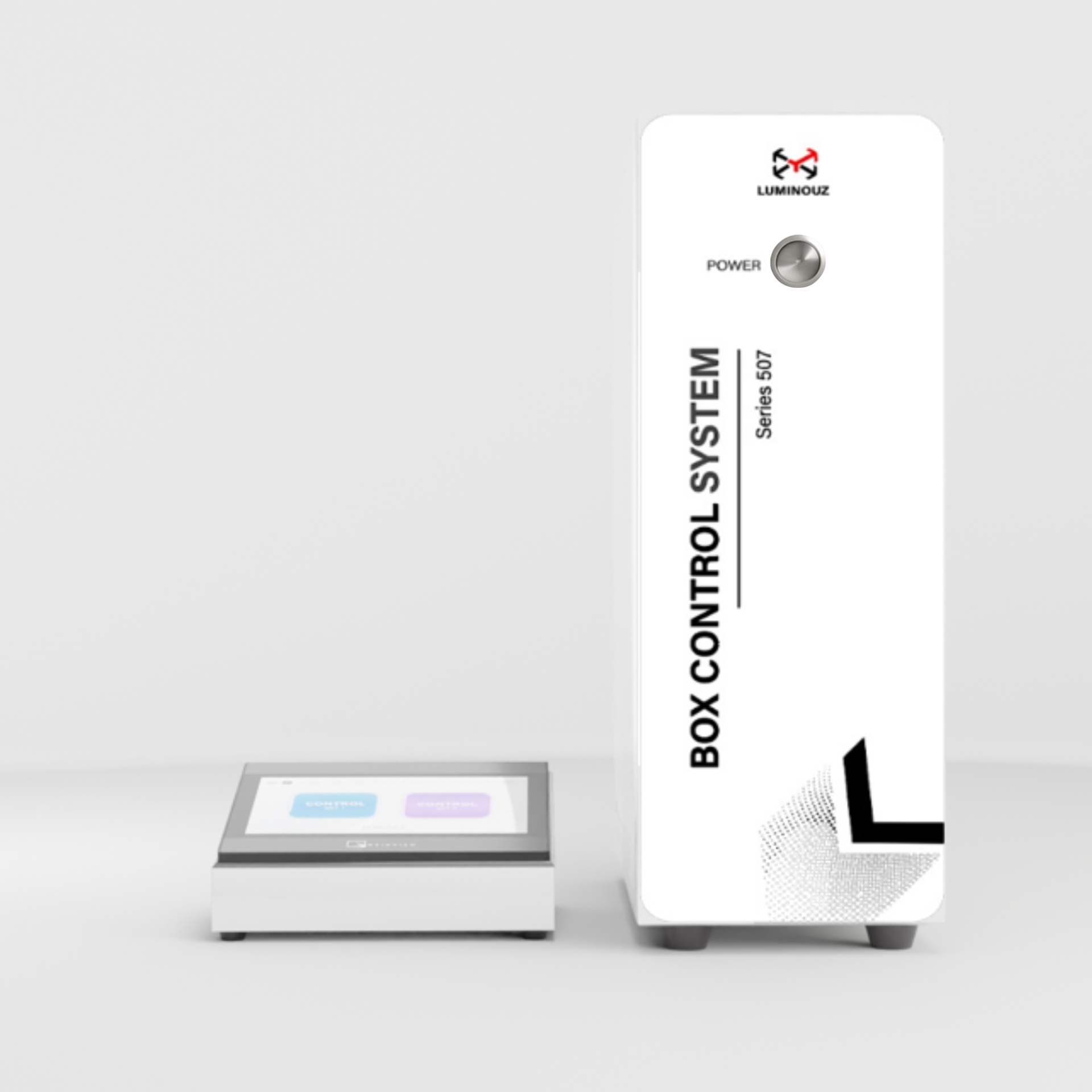

Automatic system Series 507

Box control system is a control box that collects signals and functions of various devices in one device. Combining data from all sensors in a single experiment allows researchers to quickly evaluate and compare experimental results and can repeat the experiment with accurate
results.

Technical Specifications

Main Unit SERIES 507	Dimension • Height: maximum 300 mm • Width: maximum 100 mm • Length: maximum 200 mm
Display	Touchscreen 7" with protection film (Option Computer / Notebook )
Electricity	1 phase + neutral ground, 220-230V, 50/60Hz
Base unit	• 4 x Digital comport ( RS 232 ) • 4 x Analog comport • 1 x Port for Touchscreen display 7" or Notebook(option) • 1 x USB stick • 1 x LAN (option) • On / Off port
Function • Control thermostats • Control furnace • Control mass flow • Control pressure transmitter	• Temperature sensor • Control and display process temp • Set safety temperature limits • Set safe temperature (Tsafe or max min value) • furnace • Control and display process temp • Set safety temperature limits • Set safe temperature (Tsafe or max min value) • mass flow 4 items • Control and display flowrate • pressure transmitter • Display pressure
Program	• Set programming a recipe Sequence • Define 8 recipe Sequence steps/program (maximum 2 program) • Graphical view of trends displays • Export data to a USB • Configuration of connected equipment • Timer and Clock
Spare Parts (Additional Costs)	Mainboard Control Power Supply 24V Display HMI 7"

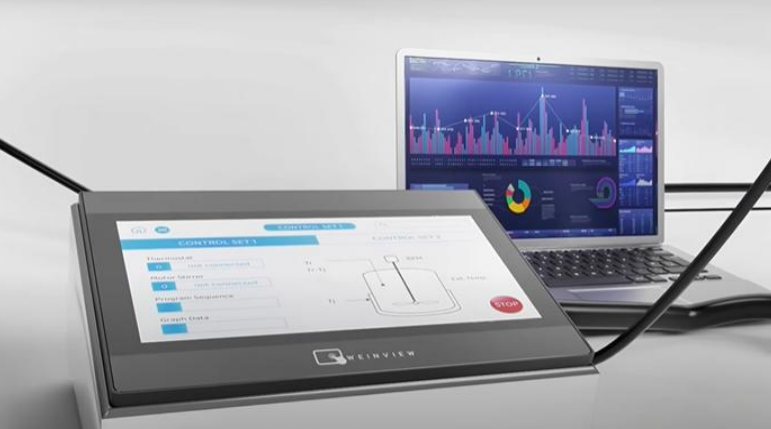

Users can easily set up experimental steps via the touch - screen interface
Reproducible results are the heart of every successful experiment The precision
of this automated reactor system ensures consistency in every trial.

Box Control Connect port (examples) :

Mass Flow meter / Controller
Furnace
Stirrer
Thermostat Connector
Thermocouple
Pump
Touchscreen display 7“ (Computer / Notebook for option)
